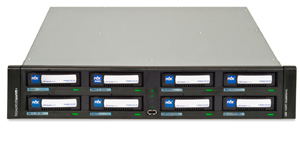

Overland Tandberg Data RDX QuikStation
Removable data protection for any or many systems on the same network
Overland Tandberg Products
Overland Tandberg Data RDX
2U Rackmount 24TB* using 8 x 3TB* pieces of media.
Unlimited offline capacity; 8 individual iSCSI disk targets
Unlimited offline capacity; 8 individual iSCSI disk targets
#8900-RDX
Get a Quote!
Get a Quote!
Click here to Jump to Pricing!
Overview:
The RDX® QuikStation™ is a network-attached removable disk array designed to provide a platform for data protection and off-site disaster recovery for SMB and SME environments. The RDX data storage solution won the 2011 Storage Networking Product of the Year award, click here to read a press release detailing the win.
Nicknamed "the Swiss Army Knife of Data Protection," it is so versatile that users can configure the appliance in up to 10 unique modes.
- 8 individual RDX QuikStor targets (addressable via 1 to 8 hosts)
- 8 individual iSCSI disk targets (addressable via 1 to 8 hosts)
- Emulated StorageLoader™ (8 slots and 1 LTO-3 tape drive)*
- Emulated StorageLibrary™ T24 (8 slots and 1-2 LTO-3 tape drives)*
- Emulated StorageLibrary™ T40+ (8 slots and 1-4 LTO-3 tape drives)*
- 8 individual LTO-3 Tape Drive targets (addressable via 1 to 8 hosts)*
- Emulated LTO autoloader or RDX autoloader
- 2 hybrid configurations that offer a combination of tape automation and RDX QuikStor
RDX® QuikStation™ Advantages
Configuration flexibility
The RDX QuikStation provides removable data protection for any or many systems on the same network. The removable disk library will now emulate 10 configurable storage types, offering users versatility and expanded compatibility. The RDX-based appliance can look like a tape library or autoloader, virtual RDX drives, stand-alone tape drives, generic disk drives, or a combination of tape and disk. Cartridge spanning allows users to store up to 12TB with a single backup set.
Compatible
RDX QuikStation is compatible with popular backup applications to quickly and easily integrate automated removable disk into existing protection plans. ISCSI connectivity provides for easy integration into existing Ethernet infrastructure.
Manageable
Built-in web-based management with multi language support is accessible from any standard web browser and offers user-friendly control through it front panel LCD with multi language support of configuration, management, operation, status and security.
Removable Disk-Based Library
Finally, a removable disk library solution that delivers the cost, durability, and removability of tape with the random access and performance of disk.
Benefits:
| Overland Tandberg Data RDX QuikStation Benefits: | |
|---|---|
| Features | Benefits |
| Based on RDX® Removable Disk | RDX is the de facto industry standard for removable disk technology and has been adopted by all major system OEMs. RDX delivers the removability and durability of tape with the random access and performance of disk. |
| Media Removability & Transportability | Easily facilitates safe data transport for offline storage, disaster recovery, archiving, data collection and interchange. Up to 10-year RDX media shelf life for data archiving capability. |
| 8 individual RDX docks | Use as 8 individual iSCSI targets with simultaneous read/write capability or as individual media locations within an emulated library. |
| 8 Individual LCD dock displays | Provide status information for each individual cartridge to facilitate cartridge management at the unit as well as via the web-based management interface. |
| Up to 24TB** online capacity with unlimited offline capacity | By utilizing 3TB RDX media, a maximum online capacity of 24TB** can be achieved. RDX media removability allows for limitless offline storage and media capacities will increase with the RDX roadmap. |
| Simultaneous read/write across 8 docks | The ability to simultaneously read or write from all 8 docks in iSCSI mode means that high performance data transfer rates can be achieved to meet shrinking backup windows. |
| 2U Rackmount Form Factor, mounting kit included | Efficient data center space utilization in only 3.5", an industry-standard 2U Rackmount Form Factor |
| Network Attached | Simple installation & deployment utilizing existing infrastructure and widespread networking expertise Perfect solution for consolidating multiple RDX operations |
| Green features for minimal power, cooling, and space requirements | Very low power requirements: under 90 watts, typical RDX removability means that data cartridges that are not currently in use can be taken offline to minimize data center power and cooling needs High density 2U Form Factor packs a lot of functionality in a very small space minimizing impact on data center space requirements |
| Configuration flexibility with iSCSI or tape automation emulation modes | Tape automation modes facilitate quick integration with existing backup applications. iSCSI facilitates centralization of resources, security, and management among multiple hosts in heterogeneous environments while reducing hardware controller costs by utilizing the ubiquitous Ethernet interface. |
| Dual Gigabit Ethernet (1GbE) ports, failover bonded | Provides high availability network connectivity. |
| Integrated web-based management | Using a standard web browser from anywhere in the world: manage, control, diagnose, and configure security. |
| One-year On-site Service (where available) | Backed worldwide by Overland Tandberg Data's exceptional service. In addition, warranty service upgrade packages are available in most areas. |
| Compatible with major backup software packages | Facilitates easy integration into existing data protection infrastructures. Compatible with Windows®, Linux, and Mac |
| Easy to Setup and Use | Start protecting data fast, no special knowledge or training required. |
| Integrated Linux-Based Operating System | Provides a clean and powerful architecture for maximum performance and compatibility. |
| Designed, Manufactured, Sold, and Serviced by Overland Tandberg Data | The world's SMB data protection experts for over 30 years. |
Specifications:
| Overland Tandberg Data RDX QuikStation Specifications: | |
|---|---|
| Part Number | 8900-RDX |
| Form Factor | 2U Rackmount |
| Capacity | Media dependent (online): 24TB* using 8 x 3TB* pieces of media. Unlimited offline capacity |
| Data Transfer Rate | Up to 200 MB/sec across multiple docks (uncompressed) |
| Logical Cartridge Move Time | <1 second |
| Network Connectivity | 2 x 1 Gigabit Ethernet, bonded, active backup/failover or adaptive load balancing |
| Configuration Options | 8 individual RDX QuikStor targets (addressable via 1 to 8 hosts) 8 individual iSCSI disk targets (addressable via 1 to 8 hosts) Emulated StorageLoaderTM (8 slots and 1 LTO-3 tape drive)* Emulated StorageLibraryTM t24 (8 slots and 1-2 LTO-3 tape drives)* Emulated StorageLibraryTM t40+ (8 slots and 1-4 LTO-3 tape drives)* 8 individual LTO-3 Tape Drive targets (addressable via 1 to 8 hosts)* Emulated LTO autoloader or RDX autoloader 2 hybrid configurations that offer a combination of tape automation and RDX targets |
| Remote Management | Integrated browser-based management console with multi-language support for English, French, German, Spanish, Chinese & Japanese |
| On-Board Control Panel | LCD Display for each RDX bay (8), LED indicators for network, USB, system health, power, eject button with LED dock/drive status. Multi-language support: English, French, German & Spanish |
| USB 2.0 Ports | 1 Front, 2 Rear |
| Removable Media Drive | 8 x RDX bays with individual display |
| RDX Media Compatibility (Capacity) | Backward & forward: 500GB 1TB, 2TB, 3TB (HDD); 128GB or 256GB (SSD) |
| Power Input | 100 - 240 Vac, 50 - 60Hz |
| Power Consumption | <90 Watts, typical |
| Environmental Compliance | EU RoHS, China RoHS, REACH, WEEE |
| Safety & Regulatory | FCC Class A, UL, CE, TUV, CB C-Tick, VCCI |
| Unit Dimensions (DxWxH) | 508mm x 438mm x 89mm / 20"x 17.25"x 3.5" |
| Packaged Dimensions (DxWxH) | 737mm x 568mm x 210mm / 29"x 22.38"x 8.25" |
| Net Weight | 10.16kg / 22.4lb |
| Gross Weight (Packaged) | 16.15kg / 35.6lb |
| Operating Temperature | 10° to 40° C (50° to 104° F) |
| Non-Operating Temperature | -20° to 60° C (-4° to 140° F) |
| Operating Humidity (Non-condensing) | 20% to 80% |
| Included in the Box | Ethernet cables (2), US and Euro power cords, USB Flash Drive, Rackmount Kit, Quick Start Guide, SecureService Activation Pack, Warranty Card, (RDX media not included) |
| Warranty | 1-year Next Business Day On-Site (Where available) |
Documentation:
Download the Overland Tandberg Data RDX QuikStation Datasheet (PDF).
